HP LaserJet 4250 4250n 4250tn 4250dtn 4250dtnsl Printer Parts Diagrams

HP LaserJet 4250 Q5400A 4250n Q5401A 4250tn Q5402A 4250dtn Q5403A 4250dtnsl Q5404A Printer Parts Diagrams


Laser Printer Parts > Printer Parts Diagrams > HP LaserJet 4250 4250n 4250tn 4250dtn 4250dtnsl Printer

  • 4250 Q5400A

  • 4250n Q5401A

  • 4250tn Q5402A

  • 4250dtn Q5403A

  • 4250dtnsl Q5404A

HP 4250 Series Printer Parts Diagrams Index

  1. HP LaserJet 4250 Consumables Printer Parts Diagrams

  2. HP LaserJet 4250 Accessories Printer Parts Diagrams

  3. HP LaserJet 4250 Memory fonts mass storage Printer Parts Diagrams

  4. HP LaserJet 4250 cables and connectivity Printer Parts Diagrams

  5. HP LaserJet 4250 Formatter laser scanner power supplies fuser Printer Parts Diagrams

  6. HP LaserJet 4250 External covers, panels door Printer Parts Diagrams

  7. HP LaserJet 4250 Internal components 1 of 4 Printer Parts Diagrams

  8. HP LaserJet 4250 Internal components 2 of 4 Printer Parts Diagrams

  9. HP LaserJet 4250 Internal components 3 of 4 Printer Parts Diagrams

  10. HP LaserJet 4250 Internal components 4 of 4 Printer Parts Diagrams

  11. HP LaserJet 4250 Main Drive Printer Parts Diagrams

  12. HP LaserJet 4250 Registration Assembly Printer Parts Diagrams

  13. HP LaserJet 4250 Tray 1 paper pickup assembly Printer Parts Diagrams

  14. HP LaserJet 4250 PCA printed circuit board assembly Printer Parts Diagrams

  15. HP LaserJet 4250 500 sheet paper feeder assembly Printer Parts Diagrams

  16. HP LaserJet 4250 500 sheet paper feeder covers panels and doors Printer Parts Diagrams

  17. HP LaserJet 4250 1500 sheet paper feeder assembles Printer Parts Diagrams

  18. HP LaserJet 4250 1500 sheet paper feeder covers panels and doors Printer Parts Diagrams

  19. HP LaserJet 4250 Stapler stacker Printer Parts Diagrams



1. HP LaserJet 4250 4250n 4250tn 4250dtn 4250dtnsl Consumables Printer Parts Diagrams

1. HP LaserJet 4250 4250n 4250tn 4250dtn 4250dtnsl Consumables Printer Parts Diagrams
1. HP LaserJet 4250 4250n 4250tn 4250dtn 4250dtnsl Consumables Printer Parts Diagrams



2. HP LaserJet 4250 4250n 4250tn 4250dtn 4250dtnsl Accessories Printer Parts Diagrams

2. HP LaserJet 4250 4250n 4250tn 4250dtn 4250dtnsl Accessories Printer Parts Diagrams
2. HP LaserJet 4250 4250n 4250tn 4250dtn 4250dtnsl Accessories Printer Parts Diagrams

  • 1 500-sheet tray and feeder Q2240B Q2440-67903

  • 2 1,500-sheet tray and feeder Q2444B Q2444-67902

  • 3 Duplexer Q2439B Q2439-67902

  • 4 75-sheet envelope feeder Q2438B Q2438-67902

  • 5 500-sheet stapler/stacker Q2443B Q2443-67908

  • 6 500-sheet stacker Q2442B Q2442-67902

  • 7 Printer stand Q2445B Q2445-60102



3. HP LaserJet 4250 4250n 4250tn 4250dtn 4250dtnsl memory fonts mass storage Printer Parts Diagrams

3. HP LaserJet 4250 4250n 4250tn 4250dtn 4250dtnsl memory fonts mass storage Printer Parts Diagrams
3. HP LaserJet 4250 4250n 4250tn 4250dtn 4250dtnsl memory fonts mass storage Printer Parts Diagrams

  • 3 Flash DIMM, 8 MB (LJ 4200/4300) C8530A

  • 3 Flash DIMM, 12 MB (LJ 4200/4300) C7867A



4. HP LaserJet 4250 4250n 4250tn 4250dtn 4250dtnsl cables and connectivity Printer Parts Diagrams

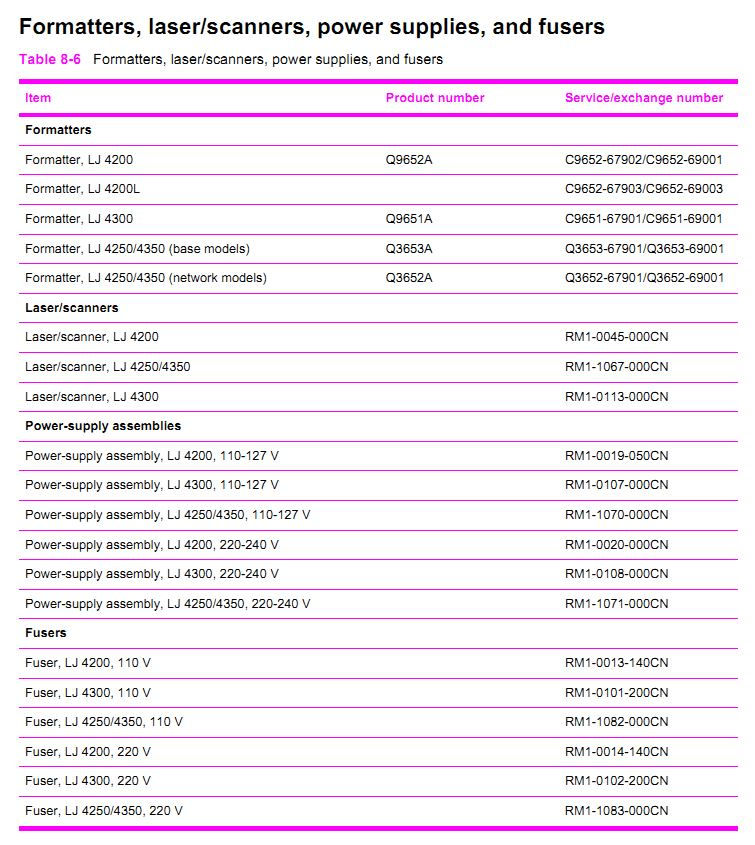

5. HP LaserJet 4250 4250n 4250tn 4250dtn 4250dtnsl Formatter laser scanner power supplies fuser Printer Parts Diagrams

5. HP LaserJet 4250 4250n 4250tn 4250dtn 4250dtnsl Formatter laser scanner power supplies fuser Printer Parts Diagrams
5. HP LaserJet 4250 4250n 4250tn 4250dtn 4250dtnsl Formatter laser scanner power supplies fuser Printer Parts Diagrams



6. HP LaserJet 4250 4250n 4250tn 4250dtn 4250dtnsl External covers, panels door Printer Parts Diagrams

6. HP LaserJet 4250 4250n 4250tn 4250dtn 4250dtnsl External covers, panels door Printer Parts Diagrams
6. HP LaserJet 4250 4250n 4250tn 4250dtn 4250dtnsl External covers, panels door Printer Parts Diagrams

  • 1 Cover, left (LJ 4200/4300) RC1-0287-020CN 1

  • 1 Cover, left (LJ 4250/4350) RM1-1077-000CN 1

  • 2 Cover, formatter RC1-0288-000CN 1

  • 3 Cover, paper-handling RC1-0289-000CN 1

  • 4 Cover, legal (LJ 4200/4300) RC1-0290-000CN 1

  • 4 Cover, legal (LJ 4250/4350) RC1-3282-000CN 1

  • 5 Cover, duplexing (LJ 4200/4300) RC1-0291-000CN 1

  • 5 Cover, duplexing (LJ 4250/4350) RC1-3280-000CN 1

  • 6 Cover assembly, right (LJ 4200/4300) RM1-0046-000CN 1

  • 6 Cover assembly, right (LJ 4250/4350) RM1-1076-000CN 1

  • 7 Spring, top Cover (LJ 4250/4350 only) RC1-0307-000CN 1

  • 8 Cable, control panel (LJ 4200/4300) RG1-4215-000CN 1

  • 8 Cable, control panel (LJ 4250/4350) RM1-1190-000CN 1

  • 9 Cover assembly, top(LJ 4200/4300) RM1-0049-000CN 1

  • 9 Cover assembly, top (LJ 4250/4350) RM1-1081-000CN 1

  • 10 Cover assembly, front RM1-0050-030CN 1

  • 11 Cover, rear output bin RM1-0027-020CN 1

  • 12 Cover, cartridge door (LJ 4200) RM1-0047-020CN 1

  • 12 Cover, cartridge door (LJ 4300) RM1-0114-020CN 1

  • 12 Cover, cartridge door (LJ 4250/4350) RM1-1080-000CN 1

  • 12A Control-panel assembly (LJ 4200/4300) RG1-4276-020CN 1

  • 12A Control-panel assembly (LJ 4250/4350) RM1-1195-000CN



7. HP LaserJet 4250 4250n 4250tn 4250dtn 4250dtnsl Internal components 1 of 4 Printer Parts Diagrams

7. HP LaserJet 4250 4250n 4250tn 4250dtn 4250dtnsl Internal components 1 of 4 Printer Parts Diagrams
7. HP LaserJet 4250 4250n 4250tn 4250dtn 4250dtnsl Internal components 1 of 4 Printer Parts Diagrams

  • 2 Spring, torsion RC1-0061-000CN 1

  • 3 Transfer roller, LJ 4200/4300 RM1-0699-020CN 1

  • 3 Transfer roller, LJ 4250/4350 RM1-1110-000CN 1

  • 4 Guide, flat cable RC1-0269-020CN 1

  • 5 Guide, flat cable RC1-0270-020CN 1

  • 6 Motor, print cartridge (M102), 8–pin (LJ 4250/4350) RK2-0274-000CN 1

  • 6 Motor, print cartridge (M102), 8–pin (LJ 4300) RH7-1576-020CN 1

  • 7 Motor, main (M101), 10–pin (LJ4200/4300) RH7-1570-000CN 1

  • 7 Motor, main (M101), 10–pin (LJ4250/4350) RK2-0272-000CN 1

  • 8 E-ring XD9-0232-000CN 1

  • 9 Gear, 14t/30t RU5-0015-000CN 1

  • 10 Screw, s, m3x8 XA9-1500-000CN 17

  • 11 Screw, tapping, m3x6 XA9-1503-000CN 6

  • 16 Flag, paper feed sensor RC1-0060-000CN 1

  • 17 Rod, fan 2 (LJ 4300) RC1-0341-000CN 1

  • 17 Rod, fan 2 (LJ 4250/4350) RC1-3339-000CN 1

  • 18 Guide, dc controller (LJ 4200/4300) RC1-0271-000CN 1

  • 18 Guide, dc controller (LJ 4250/4350) RC1-3340-000CN 1

  • 19 Feed roller assembly RM1-0012-020CN 1

  • 20 Main drive assembly (LJ 4200/4300) RM1-0001-030CN 1

  • 20 Main drive assembly (LJ 4250/4350) RM1-1066-000CN 1

  • 21 Registration assembly RM1-0011-060CN 1

  • 22 Power-supply assembly, 110-127 V (LJ 4200) RM1-0019-050CN 1

  • 22 Power-supply assembly, 220-240 V (LJ 4200) RM1-0020-000CN 1

  • 22 Power-supply assembly, 110-127 V (LJ 4250/4350) RM1-1070-000CN 1

  • 22 Power-supply assembly, 220-240 V (LJ 4250/4350) RM1-1071-000CN 1

  • 22 Power-supply assembly, 110-127 V (LJ 4300) RM1-0107-000CN 1

  • 22 Power-supply assembly, 220-240 V (LJ 4300) RM1-0108-000CN 1

  • 501 Screw, tapping, pan head, m4x10 XB4-7401-007CN 14

  • 502 Screw, w/washer, m3x6 XB2-7300-607CN 2



8. HP LaserJet 4250 4250n 4250tn 4250dtn 4250dtnsl Internal components 2 of 4 Printer Parts Diagrams

8. HP LaserJet 4250 4250n 4250tn 4250dtn 4250dtnsl Internal components 2 of 4 Printer Parts Diagrams
8. HP LaserJet 4250 4250n 4250tn 4250dtn 4250dtnsl Internal components 2 of 4 Printer Parts Diagrams

  • 1 Rod, switch RC1-0268-000CN 1

  • 2 Guide, scanner cable RC1-0340-020CN 1

  • 3 Guide, scanner cable RC1-0385-000CN 1

  • 4 Gear, 18t RU5-0045-020CN 1

  • 5 Shaft, retard drive RL1-0264-000CN 1

  • 6 Sensor, top-bin-full/stack (PS 104/PS 107), LJ 4200/4300 WG8-5362 1

  • 6 Sensor, stack (PS 107), LJ 4250/4350 WG8-5624-000CN 1

  • 7 Gear, 23t RU5-0040-000CN 1

  • 8 Bushing RC1-0206-000CN 1

  • 9 Laser/scanner assembly (LJ 4200) RM1-0045-000CN 1

  • 9 Laser/scanner assembly (LJ 4250/4350) RM1-1067-000CN 1

  • 9 Laser/scanner assembly (LJ 4300) RM1-0113-000CN 1

  • 10 Bushing, feed shaft RC1-0264-000CN 1

  • 12 Cable, laser (LJ 4200/4300) RG1-4212-000CN 1

  • 12 Cable, laser (LJ 4250/4350) RM1-1198-000CN 1

  • 13 Screw, s, m3x8 XA9-1500-000CN 20

  • 14 E-ring XD9-0232-000CN 1

  • 15 Screw, rs, m3x10 XA9-1559-000CN 6

  • 16 Solenoid, tray 2 pickup (LJ 4200/4300) RH7-5355-000CN 1

  • 16 Solenoid, tray 2 pickup (LJ 4250/4350) RK2-0269-000CN 1

  • 17 Pickup-sensor cable assembly (LJ4200/4300) RG1-4221-000CN 1

  • 17 Pickup-sensor cable assembly (LJ4250/4350) RM1-1181-000CN 1

  • 18 Roller, paper-pickup RM1-0036-000CN 1

  • 19 Roller, paper-feed RM1-0037-020CN 1

  • 20 Holder, paper sensing RC1-0208-030CN 1

  • 21 Flag, paper sensing RC1-0209-000CN 1

  • 22 Guide, power-supply, front RC1-0243-000CN 1

  • 23 Arm, paper pickup (LJ 4200/4300) RC1-0211-000CN 1

  • 23 Arm, paper pickup (LJ 4250/4350) RC1-3352-000CN 1

  • 24 Holder, paper pickup arm RC1-0212-000CN 1

  • 25 Gear, 23t RC1-0371-000CN 1

  • 26 Plate, swing RL1-0013-000CN 1

  • 27 Spring, compression RC1-0213-000CN 1

  • 29 Guide, tray 2 RC1-0153-030CN 1

  • 31 Sheet, solenoid damper RC1-0330-020CN 1

  • 32A Cable, feeder connector (LJ 4200/4300) RG1-4223-000CN 1

  • 32A Cable, feeder connector (LJ 4250/4350) RM1-1192-000CN 1

  • 33 Kicker assembly RL1-0015-000CN 1

  • 35 Size-sensing assembly, tray 2 RM1-0041-020CN 1

  • 36 Foot RB1-8107-000CN 2

  • 37 Guard, right-edge RC1-0242-000CN 1

  • 38 Guide, ECU, rear RC1-0244-000CN 1

  • 39 Guard, left-edge RC1-0247-000CN 1

  • 41 Screw, tapping, m3x6 XA9-1503-000CN 3

  • 42 Cable, accessory interface RM1-0042-000CN 1

  • 43 Swing plate assembly RM1-0043-020CN 1

  • 44 Cable, sensor, top-bin-full (LJ 4200/4300) RG1-4214-000CN 1

  • 44 Cable, sensor, top-bin-full (LJ 4250/4350) RM1-1189-000CN 1

  • 45 Cable, envelope- feeder-connecting (LJ 4200/4300) RG1-4224-000CN 1

  • 45 Cable, envelope-feeder-connecting (LJ 4250/4350) RM1-1193-000CN 1

  • 49 Spring, torsion RC1-0254-000CN 1

  • 50 Spring, torsion RC1-1923-000CN 1

  • 51 Sensor, top-bin-full (PS104) (LJ 4200/4300) WG8-5362-000CN 1

  • 51 Sensor, stack (PS104) (LJ 4250/4350) WG8-5624-000CN 1

  • 52 Pickup drive assembly RM1-0034-040CN 1

  • 501 Screw, tapping, pan head, m4x10 XB4-7401-007CN 2

  • 502 Screw, tapping, truss head, m3x8 XB4-7300-809CN 1

  • 503 Screw, tapping, truss head, m4x8 XB4-7400-809CN 2



9. HP LaserJet 4250 4250n 4250tn 4250dtn 4250dtnsl Internal components 3 of 4 Printer Parts Diagrams

9. HP LaserJet 4250 4250n 4250tn 4250dtn 4250dtnsl Internal components 3 of 4 Printer Parts Diagrams
9. HP LaserJet 4250 4250n 4250tn 4250dtn 4250dtnsl Internal components 3 of 4 Printer Parts Diagrams

  • 1 Support, lifter-drive assembly RC1-0200-020CN 1

  • 2 Duct, fan 2 (right side) (LJ 4300) RC1-0272-000CN 1

  • 2 Duct, fan 2 (right side) (LJ 4250/4350) RC1-3338-000CN 1

  • 3 Guide, left RC1-0273-000CN 1

  • 4 Guide, right RC1-0274-020CN 1

  • 5 Holder, thermistor (plastic) RC1-0342-020CN 1

  • 6 Holder, thermistor (metal) RC1-0343-020CN 1

  • 7 Cover, fan connector RC1-0344-020CN 1

  • 8 Guide, connecting cable RC1-0386-000CN 1

  • 10 Dc controller (LJ 4200) RG1-4236-040CN 1

  • 10 Dc controller (LJ 4250/4350) RM1-1108-000CN 1

  • 10 Dc controller (LJ 4300) RG1-4237-040CN 1

  • 12 Screw, rs, m3x10 XA9-1559-000CN 1

  • 13 Screw, s, m3x8 XA9-1500-000CN 16

  • 14 Fan, right (LJ 4300) RH7-1577-000CN 1

  • 14 Fan, right (LJ 4250/4350) RK2-0280-000CN 1

  • 16 Fan, left (LJ 4200/4300) RH7-1573-000CN 1

  • 16 Fan, left (LJ 4250/4350) RK2-0278-000CN 1

  • 17 Thermistor (LJ 4200/4300) RH7-7116-000CN 1

  • 17 Thermistor (LJ 4250/4350) RK2-0359-000CN 1

  • 18 Spring, tension RC1-0198-000CN 1

  • 19 Microswitch, top cover WC4-5139-000CN 1

  • 20 Bushing, paper delivery RC1-0136-000CN 1

  • 21 Cable, door switch RG1-4213-000CN 1

  • 22 Cover, envelope RC1-0320-000CN 1

  • 23 Cover, inner front, right RC1-0019-000CN 1

  • 25 Fuser, 110-127 V (LJ 4200) RM1-0013-140CN 1

  • 25 Fuser, 110-127 V (LJ 4300) RM1-0101-200CN 1

  • 25 Fuser, 110-127 V (LJ 4250/4350) RM1-1082-000CN 1

  • 25 Fuser, 220-240 V (LJ 4200) RM1-0014-140CN 1

  • 25 Fuser, 220-240 V (LJ 4300) RM1-0102-200CN 1

  • 25 Fuser, 220-240 V (LJ 4250/4350) RM1-1083-000CN 1

  • 26 Cable, fuser (LJ 4200/4200L) RG1-4205-000CN 1

  • 26 Cable, fuser (LJ 4250/4350) RM1-1216-000CN 1

  • 26 Cable, fuser (LJ 4300) RG1-4231-000CN 1

  • 27 Paper-delivery assembly RM1-0026-040CN 1

  • 28 Duplexing-pendulum assembly RM1-0002-020CN 1

  • 29 Lifter-drive assembly (LJ 4200/4300) RM1-0033-020CN 1

  • 29 Lifter-drive assembly (LJ 4250/4350) RM1-1074-000CN 1

  • 30 Tray 1 pickup assembly (LJ 4200/4300) RM1-0004-060CN 1

  • 30 Tray 1 pickup assembly (LJ 4250/4350) RM1-1097-000CN 1

  • 501 Screw, tapping, pan head, m4x10 XB4-7401-007CN 4

  • 502 Screw, tapping, truss head, m4x16 XB4-7401-605CN 2



10. HP LaserJet 4250 4250n 4250tn 4250dtn 4250dtnsl Internal components 4 of 4 Printer Parts Diagrams

10. HP LaserJet 4250 4250n 4250tn 4250dtn 4250dtnsl Internal components 4 of 4 Printer Parts Diagrams
10. HP LaserJet 4250 4250n 4250tn 4250dtn 4250dtnsl Internal components 4 of 4 Printer Parts Diagrams

1 Power-supply assembly, 110-127 V (LJ 4200) RM1-0019-050CN 1

1 Power-supply assembly, 220-240 V (LJ 4200) RM1-0020-000CN 1

1 Power-supply assembly, 110-127 V (LJ 4250/4350) RM1-1070-000CN 1

1 Power-supply assembly, 220-240 V (LJ 4250/4350) RM1-1071-000CN 1

1 Power-supply assembly, 110-127 V (LJ 4300) RM1-0107-000CN 1

1 Power-supply assembly, 220-240 V (LJ 4300) RM1-0108-000CN 1

2 Feed assembly RM1-0025-040CN 1

3 Cable, power-supply inlet, 110-127 V RG1-4209-000CN 1

3 Cable, power-supply inlet, 110-127 V RM1-1218-000CN 1

3 Cable, power-supply inlet, 220-240 V RG1-4230-000CN 1

3 Cable, power-supply inlet, 220-240 V RM1-1219-000CN 1

4 Connector, duplexer RG1-4222-000CN 1

4 Connector, duplexer VS1-7333-006CN 1

5 Screw, s, m3x8 XA9-1500-000CN 2

6 Cable, flat (J80-J50) (LJ 4250/4350) RK2-0290-000CN 1

7 Cable, flat (J81-J51) (LJ 4250/4350) RK2-0288-000CN 1

8 Screw, w/washer, m3x8 XA9-1420-000CN 7

501 Screw, w/washer, m4x6 XB2-7400-606CN 1

HP LaserJet 4250 Internal components 4 of 4 Printer Parts Diagrams
HP LaserJet 4250 Internal components 4 of 4 Printer Parts Diagrams



11. HP LaserJet 4250 4250n 4250tn 4250dtn 4250dtnsl Main Drive Printer Parts Diagrams

11. HP LaserJet 4250 4250n 4250tn 4250dtn 4250dtnsl Main Drive Printer Parts Diagrams
11. HP LaserJet 4250 4250n 4250tn 4250dtn 4250dtnsl Main Drive Printer Parts Diagrams

  • Main drive assembly (LJ 4200/4300) RM1-0001-030CN 1

  • Main drive assembly (LJ 4250/4350) RM1-1066-000CN 1

  • 1 Arm, cartridge-release RC1-0003-000CN 1



12. HP LaserJet 4250 4250n 4250tn 4250dtn 4250dtnsl Registration Assembly Printer Parts Diagrams

12. HP LaserJet 4250 4250n 4250tn 4250dtn 4250dtnsl Registration Assembly Printer Parts Diagrams
12. HP LaserJet 4250 4250n 4250tn 4250dtn 4250dtnsl Registration Assembly Printer Parts Diagrams

  • Feed-roller assembly RM1-0012-020CN 1

  • 1 Clutch (CL101) (LJ 4200/4300) RH7-5358-000CN 1

  • 1 Clutch (CL101) (LJ 4250/4350) RK2-0349-000CN 1

  • 2 Gear, 30t RU5-0050-000CN 1

  • 3 E-ring (LJ4200/4300) XD9-0137-000CN 1

  • 3 E-ring (LJ4250/4350) XD9-0234-010CN 1



13. HP LaserJet 4250 4250n 4250tn 4250dtn 4250dtnsl Tray 1 paper pickup assembly Printer Parts Diagrams

13. HP LaserJet 4250 4250n 4250tn 4250dtn 4250dtnsl Tray 1 paper pickup assembly Printer Parts Diagrams
13. HP LaserJet 4250 4250n 4250tn 4250dtn 4250dtnsl Tray 1 paper pickup assembly Printer Parts Diagrams

  • Tray 1 pickup assembly (LJ 4200/4300) RM1-0004-060CN 1

  • Tray 1 pickup assembly (LJ 4250/4350) RM1-1097-000CN 1

  • 1 Tray 1 RM1-0005-020CN 1

  • 2 Separation pad RL1-0007-000CN 1

  • 3 Solenoid, tray 1 pickup (LJ 4200/4300) RH7-5357-000CN 1

  • 3 Solenoid, tray 1 pickup (LJ 4250/4350) RK2-0276-000CN 1

  • 4 Roller, pickup RL1-0019-000CN 1



14. HP LaserJet 4250 4250n 4250tn 4250dtn 4250dtnsl PCA printed circuit board assembly Printer Parts Diagrams

  • 1 Dc controller (LJ 4200) RG1-4236-040CN 1

  • 1 Dc controller (LJ 4250/4350) RM1-1108-000CN 1

  • 1 Dc controller (LJ 4300) RG1-4237-040CN 1

  • (not shown) Formatter assembly (LJ 4200 printer) C9652-67902 1

  • (not shown) Formatter assembly (LJ 4200L printer) C9652-67903 1

  • (not shown) Formatter assembly printer, base model Q3653-67901 1

  • (not shown) Formatter assembly printer, network models Q3652-67901 1

  • (not shown) Formatter assembly (LJ 4300 printer) C9651-67901 1

14. HP LaserJet 4250 4250n 4250tn 4250dtn 4250dtnsl PCA printed circuit board assembly Printer Parts Diagrams
14. HP LaserJet 4250 4250n 4250tn 4250dtn 4250dtnsl PCA printed circuit board assembly Printer Parts Diagrams



15. HP LaserJet 4250 4250n 4250tn 4250dtn 4250dtnsl 500 sheet paper feeder assembly Printer Parts Diagrams

15. HP LaserJet 4250 4250n 4250tn 4250dtn 4250dtnsl 500 sheet paper feeder assembly Printer Parts Diagrams
15. HP LaserJet 4250 4250n 4250tn 4250dtn 4250dtnsl 500 sheet paper feeder assembly Printer Parts Diagrams

  • 500-sheet feeder and tray Q2440-67903 1

  • 1 Lifter-drive assembly, 500-sheet feeder RM1-1094-000CN 1

  • 2 Paper-pickup-drive assembly, 500-sheet feeder RM1-0056-000CN 1

  • 3 500-sheet universal replacement tray (LJ 4200/4300) RM1-0028-060CN 1

  • 3 500-sheet universal replacement tray (LJ 4250/4350) RM1-1088-000CN 1

  • (not shown) Stop, detent RC1-3303-000CN 1

  • (not shown) Limiter, torque RC1-3335-000CN 1



16. HP LaserJet 4250 4250n 4250tn 4250dtn 4250dtnsl 500 sheet paper feeder covers panels and doors Printer Parts Diagrams

16. HP LaserJet 4250 4250n 4250tn 4250dtn 4250dtnsl 500 sheet paper feeder covers panels and doors Printer Parts Diagrams
16. HP LaserJet 4250 4250n 4250tn 4250dtn 4250dtnsl 500 sheet paper feeder covers panels and doors Printer Parts Diagrams

  • 1 Cover, front upper, 500-sheet feeder RC1-0486-020CN 1

  • 2 Cover, left, 500-sheet tray RC1-0487-020CN 1

  • 3 Cover, right, 500-sheet tray RC1-0488-020CN 1

  • 7 Cover, legal RC1-0509-000CN 1

  • 11 Number, display, optional feeder (LJ 4250/4350) RC1-3304-000CN 1

  • (not shown) PCA, 500-sheet feeder RM1-1122-000CN 1

  • (not shown) Cable, interface, upper, 500-sheet feeder RG1-4201-000CN 1

  • (not shown) Cable, interface, upper, 500-sheet feeder RM1-1236-000CN 1

  • (not shown) Cable, interface, lower, 500-sheet feeder RG1-4202-000CN 1

  • (not shown) Cable, interface, lower, 500-sheet feeder RM1-1237-000CN 1

  • (not shown) Cable, size-sensor, 500-sheet feeder RG1-4204-000CN 1

  • (not shown) Cable, sensor assembly, 500-sheet feeder RM1-1238-000CN 1

  • (not shown) Media-size sensor assembly, 500-sheet feeder RM1-0041-000CN 1

  • (not shown) Gear, 18T, 500-sheet feeder RU5-0088-000CN 1



17. HP LaserJet 4250 4250n 4250tn 4250dtn 4250dtnsl 1500 sheet paper feeder assembles Printer Parts Diagrams

17. HP LaserJet 4250 4250n 4250tn 4250dtn 4250dtnsl 1500 sheet paper feeder assembles Printer Parts Diagrams
17. HP LaserJet 4250 4250n 4250tn 4250dtn 4250dtnsl 1500 sheet paper feeder assembles Printer Parts Diagrams

  • 1,500-sheet feeder Q2444–67902 1

  • 1 Paper-pickup assembly, 1,500-sheet feeder RM1-1134-000CN 1

  • 2 Cover assembly, front, 1,500-sheet feeder RM1-0273-070CN 1

  • 3 Pickup drive assembly, 1,500-sheet feeder RM1-1133-000CN 1

  • 4 Lifter-drive assembly, 1,500-sheet feeder RM1-1136-000CN 1



18. HP LaserJet 4250 4250n 4250tn 4250dtn 4250dtnsl 1500 sheet paper feeder covers panels and doors Printer Parts Diagrams

18. HP LaserJet 4250 4250n 4250tn 4250dtn 4250dtnsl 1500 sheet paper feeder covers panels and doors Printer Parts Diagrams
18. HP LaserJet 4250 4250n 4250tn 4250dtn 4250dtnsl 1500 sheet paper feeder covers panels and doors Printer Parts Diagrams

  • 1 Cover, right, 1,500-sheet feeder RC1-0661-000CN 1

  • 2 Cover, left, 1,500-sheet feeder RC1-0662-000CN 1

  • 3 Cover, rear, 1,500-sheet feeder RC1-0663-000CN 1

  • 8 Screw, B, M4X8 XA9-1523-010CN 1

  • 9 Screw, w/washer, M3X8 XA9-1420-010CN 4

  • 11 Cover assembly, front, 1,500-sheet feeder RM1-0273-070CN 1

  • (not shown) PCA, 1,500-sheet feeder RG1-4374-000CN 1

  • (not shown) Cable, interface, 1,500-sheet feeder RG1-4239-000CN 1

  • (not shown) Cable, door sensor, 1,500-sheet feeder RG1-4241-000CN 1

  • (not shown) Cable, media-size sensor, 1,500-sheet feeder RG1-4240-000CN 1

  • (not shown) Motor, stepping, 1,500-sheet feeder RH7-1603-000CN

  • (not shown) Sensor, size (inside), 1,500-sheet feeder RC1-0748-000CN

  • (not shown) Sensor gear assembly, 1,500-sheet feeder RM1-0286-000CN (not shown) Sensor, size (outside), 1,500-sheet feeder RM1-0294-000CN

  • (not shown) Connector, 6-point, 1,500-sheet feeder VS1-7334-006CN

  • (not shown) Sensor assembly RM1-1135-000CN 1



19. HP LaserJet 4250 4250n 4250tn 4250dtn 4250dtnsl Stapler stacker Printer Parts Diagrams

19. HP LaserJet 4250 4250n 4250tn 4250dtn 4250dtnsl Stapler stacker Printer Parts Diagrams
19. HP LaserJet 4250 4250n 4250tn 4250dtn 4250dtnsl Stapler stacker Printer Parts Diagrams

  • 1 Stapler unit only RM1-1164-000CN 1

  • 2 1,000-staple cartridge (3-pack) Q3216-60500 1

  • 3 Stacker Q2442-67902 1

  • 4 Stapler/stacker Q2443-67908 1

  • 5 Output bin (fits stapler, stapler/stacker, or stacker) RM1-0248-000CN 1

  • (not shown) Cover, rear assembly, stacker RM1-0237-000CN 1



Other Helpful HP LaserJet Printer Support Resources

Metrofuser is a leading global innovator, manufacturer of printer parts, equipment, diagnostics, repair information and systems solutions for professional users performing critical tasks. Products and services include hp printer parts, printers and printer repair training. Parts include hp printer parts such as printer fusers, printer maintenance kits and other hp printer replacement parts.  The company's, customers include office equipment dealerships, online retailers, repair centers and MPS service providers nationwide. Metrofuser has been named to Inc. Magazine’s fastest growing companies five consecutive years

Top Selling Printer Parts

​

Top Selling Fusers

​

Top Selling Maintenance Kits

Please Review Us On Google

​

Top Dollar Paid For HP Fuser and Transfer Belt Cores

​

We Buy Unused Genuine HP Surplus Fusers, Maintenance Kits And Transfer Belts

bottom of page
