HP M4555h M4555f M4555fskm Laser Printer Part Diagrams

HP LaserJet Enterprise M4555h M4555f M4555fskm Printer Part Diagrams


Laser Printer Parts > Printer Parts Diagrams > HP M4555h M4555f M4555fskmParts Diagrams HP LaserJet Enterprise Printers


  • HP Enterprise MFP Color LaserJet M4555h M4555f M4555fskmPart number CE738A CE503A CE504A

HP M4555h M4555f M4555fskm Printer Parts Diagram Index

  1. HP M4555 Covers, Panels and doors printer parts diagram

  2. M4555 Upper plate assembly printer parts diagrams

  3. HP M4555 Internal Components 1 of 5 printer parts diagram

  4. HP M4555 Internal Components 2 of 5 printer parts diagram

  5. HP M4555 Internal Components 3 of 5 printer parts diagram

  6. HP M4555 Internal Components 4 of 5 printer parts diagram

  7. HP M4555 Internal Components 5 of 5 printer parts diagram

  8. HP M4555 High voltage power supply HVPS printer parts diagram

  9. HP M4555 Paper tray cassette assembly tray 2 printer parts diagram

  10. HP M4555 Paper pickup assembly printer parts diagram

  11. HP M4555 Reverse assembly printer parts diagram

  12. HP M4555 Paper feed roller assembly printer parts diagram

  13. HP M4555 Registration assembly printer parts diagram

  14. HP M4555 MP Tray 1 pickup assembly printer parts diagram

  15. HP M4555 Duplex assembly printer parts diagram

  16. HP M4555 Fuser assembly printer parts diagram

  17. HP M4555 PCS printed circuit board base model assembly printer parts diagram

  18. HP M4555 Paper feeder covers assembly printer parts diagram

  19. HP M4555 Main body paper feeder 1 x 500 sheet assembly printer parts diagram

  20. HP M4555 Covers paper feeder 1 x 500 3 x 500 1 of 2 sheet assembly printer parts diagram

  21. HP M4555 Covers paper feeder 1 x 500 3 x 500 2 of 2 sheet assembly printer parts diagram

  22. HP M4555 Main body MBM Covers printer parts diagram

  23. HP M4555 Main body MBM 1 of 2 printer parts diagram

  24. HP M4555 Main body MBM 2 of 2 printer parts diagram

  25. HP M4555 Document feeder whole unit printer parts diagram

  26. HP M4555 Document feeder components 1 of 5 printer parts diagram

  27. HP M4555 Document feeder components 2 of 5 printer parts diagram

  28. HP M4555 Document feeder components 3 of 5 printer parts diagram

  29. HP M4555 Document feeder components 4 of 5 printer parts diagram

  30. HP M4555 Document feeder components 5 of 5 printer parts diagram

  31. HP M4555 Whole Scanner Assembly printer parts diagram

  32. HP M4555 Scanner Components 1 of 8 printer parts diagram

  33. HP M4555 Scanner Components 2 of 8 printer parts diagram

  34. HP M4555 Scanner Components 3 of 8 printer parts diagram

  35. HP M4555 Scanner Components 4 of 8 printer parts diagram

  36. HP M4555 Scanner Components 5 of 8 printer parts diagram

  37. HP M4555 Scanner Components 6 of 8 printer parts diagram

  38. HP M4555 Scanner Components 7 of 8 printer parts diagram

  39. HP M4555 Scanner Components 8 of 8 printer parts diagram



1. HP M4555 Covers, Panels and doors printer parts diagram

1. HP M4555 Covers, Panels and doors printer parts diagram
1. HP M4555 Covers, Panels and doors printer parts diagram

  • 1 Cover, front-upper side assembly RM1-7394-000CN 1

  • 2 Cover, front RC2-8007-000CN 1

  • 3 Cover, right front RC2-8011-000CN 1

  • 4 Cover, right rear RC2-8013-000CN 1

  • 5 Cover, left rear RC2-8014-000CN 1

  • 6 Cover, rear side RC2-7980-000CN 1

  • 7 Cover, cassette left assembly RM1-7378-000CN 1

  • 8 Cover, MP assembly (Tray 1) RM1-7402-000CN 1

  • 9 Cover, tray base assembly RM1-7409-000CN 1

  • 10 Cover, paper delivery tray assembly RM1-7414-000CN 1

  • 11 Cover, top rear RC2-7992-000CN 1

  • 12 Cover, cable image scanner RC2-7993-000CN 1

  • 13 Cover, right lower assembly RM1-7404-000CN 14

  • 1 Cover, lower left image scanner RC2-8037-000CN 1

  • 15 Cover, right image scanner RC2-8036-000CN 1

  • 16 Cover, front-lower left RC2-7983-000CN 1



2. M4555 Upper plate assembly printer parts diagrams

2. M4555 Upper plate assembly printer parts diagrams
2. M4555 Upper plate assembly printer parts diagrams

  • 2 Link handle (upper plate) RC1-2822-000CN 1

  • 3 Rod link (upper plate) RC1-2830-000CN 1

  • 7 Block, guide support (upper plate) RC1-3102-000CN 1

  • 8 Cover, front lock IS (upper plate) RM1-7394-000CN 1

  • 9 Cover, rear lock IS (upper plate) RC2-8027-000CN 1

  • 10 Upper cartridge guide (upper plate) RC2-8028-000CN 1

  • 11 Legal size guide (upper plate) RC2-8029-000CN 1

  • 12 Cartridge support 1 (upper plate) RC2-8030-000CN 1

  • 13 Cartridge support 2 (upper plate) RC2-8031-000CN 1

  • 16 Handle lock (upper plate) RC2-8096-000CN 1

  • 17 Right shutter holder (upper plate) RC2-8097-000CN 1



3. HP M4555 Internal Components 1 of 5 printer parts diagram

3. HP M4555 Internal Components 1 of 5 printer parts diagram
3. HP M4555 Internal Components 1 of 5 printer parts diagram

  • 1 Transfer roller assembly RM1-5462-000CN 1

  • 2 Ground plate assembly RM1-5461-000CN 1

  • 3 Cover, environment RL1-2831-000CN 1

  • 4 Cover, front inner RC2-7979-000CN 1

  • 5 Cable, size detect RM1-7179-000CN 1

  • 6 Shaft, right-lower access door hinge RU5-4142-000CN 1

  • 7 Cover, MP (Tray 1) gear RC2-7987-000CN 1

  • 8 Lifter base assembly RM1-5913-000CN 1

  • 9 Link rod, lower-access door RC1-2902-000CN 1

  • 10 Spring, torsion RC2-8085-000CN 1

  • 11 Sensor, assembly right door RM1-1045-000CN 1

  • 12 Face-up open guide assembly RM1-7389-000CN 1

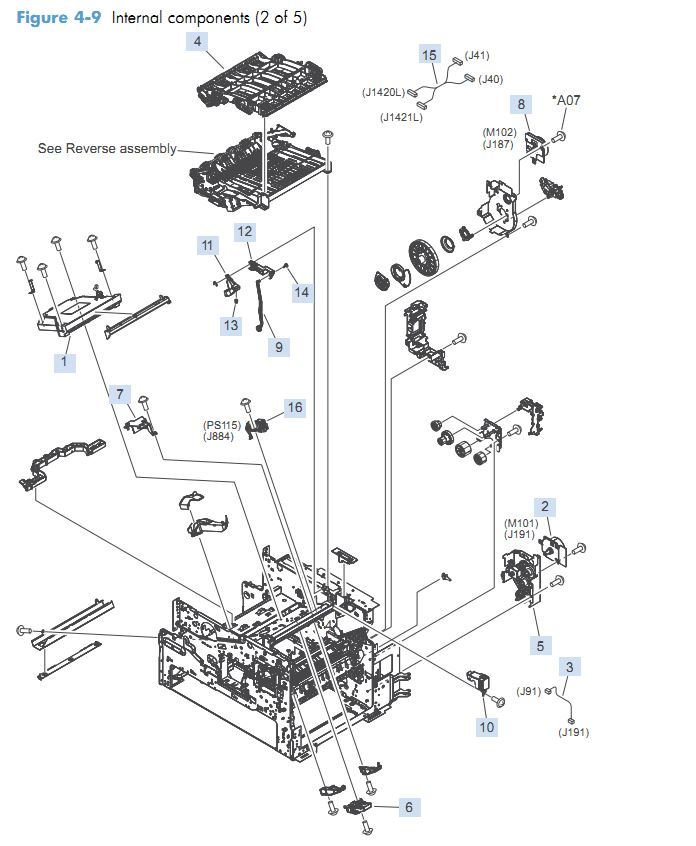

4. HP M4555 Internal Components 2 of 5 printer parts diagram

4. HP M4555 Internal Components 2 of 5 printer parts diagram
4. HP M4555 Internal Components 2 of 5 printer parts diagram

  • 1 Laser/scanner assembly RM1-7419-000CN 1

  • 2 Motor, DC 24V RL1-1657-020CN 1

  • 3 Cable, paper feed motor RM1-7114-000CN 1

  • 4 Reverse estrangement guide assembly RM1-7380-000CN 1

  • 5 Paper pickup drive assembly RM1-7403-000CN 1

  • 6 Tag holder assembly RM1-4539-000CN 1

  • 7 Cover, lens protective RC2-7994-000CN 1

  • 8 Motor, DC 24V RL1-1659-010CN 1

  • 9 Rod, release RC2-8086-000CN 1

  • 10 Cover, door arm (top cover) RC1-2833-000CN 1

  • 11 Arm, door B RC2-7967-000CN 1

  • 12 Arm, door 1 RC1-2827-000CN 1

  • 13 Spring, compression RU5-2265-000CN 1

  • 14 Stopper, bushing arm RC1-3090-000CN 1

  • 15 Cable, switchback joint RM1-7180-000CN 1

  • 16 Sensor, assembly cartridge RM1-8323-000CN 1



5. HP M4555 Internal Components 3 of 5 printer parts diagram

5. HP M4555 Internal Components 3 of 5 printer parts diagram
5. HP M4555 Internal Components 3 of 5 printer parts diagram

  • 1 Cover, inner rear RC2-7982-000CN 1

  • 3 Fan (FN101) RK2-1988-000CN 1

  • 4 Fan (FN301) RK2-1991-000CN 1

  • 5 Fan (FN105) RK2-0280-000CN 1

  • 6 Cassette right rail assembly RM1-5931-000CN 1

  • 7 Cassette left rail assembly RM1-5932-000CN 1

  • 8 Cable, cartridge sensor RM1-7112-000CN 1

  • 9 Center shroud RL1-2830-000CN 1

  • 10 Cable, reverse fan RM1-7177-000CN 1

  • 11 Cable, scanner joint drum motor RM1-7178-000CN 1

  • 12 Cable, laser



6. HP M4555 Internal Components 4 of 5 printer parts diagram

6. HP M4555 Internal Components 4 of 5 printer parts diagram
6. HP M4555 Internal Components 4 of 5 printer parts diagram

  • 1 Cover, reverse side rear RC1-2852-000CN 1

  • 2 Rod, switch front RC1-2980-000CN 1

  • 3 Cable, paper delivery sensor RM1-7168-000CN 1

  • 4 Cover, IS front RL1-2832-000CN 1

  • 5 Cover, back panel assembly RM1-7415-000CN 1

  • 6 Cable, paper delivery RM1-7167-000CN 1

  • 7 Cable, USB RK2-3241-000CN 1

  • 8 Bushing RC1-2922-000CN 2

  • 11 Low-voltage power supply 110V RM1-7401-000CN 1

  • 11 Low-voltage power supply 220V RM1-7413-000CN 1

  • 13 Link switch RC1-3003-000CN 1

  • 14 Sensor unit MBM RM1-7374-000CN 1

  • 15 Cable, full detect RM1-7158-000CN 1

  • 16 Stopper, bushing arm RC1-3090-000CN 1

  • 17 Cable, scanner power supply RM1-7161-000CN 1



7. HP M4555 Internal Components 5 of 5 printer parts diagram

7. HP M4555 Internal Components 5 of 5 printer parts diagram
7. HP M4555 Internal Components 5 of 5 printer parts diagram

  • 1 Connector PCA assembly RM1-7375-000CN 1

  • 2 Cable, flat flexible (FFC) RK2-3206-000CN 1

  • 3 Connector, snap tight VS1-7207-007CN 1

  • 4 Cable, paper feed RM1-7169-000CN 1

  • 5 Cable, environmental sensor RM1-7164-000CN 1

  • 6 Cable, P sensor solenoid RM1-7170-000CN 1

  • 7 Fan (FN104) RK2-3214-000CN 1

  • 8 Cable, door switch RM1-7113-000CN 1

  • 9 Spring, tension RU6-2475-000CN 1

  • 11 Cable, FSR control RM1-7156-000CN 1

  • 12 DC controller PCA RM1-7102-000CN 1

  • 13 Fuser motor assembly RM1-5051-020CN 1

  • 14 Cable, envelope feeder RM1-5085-000CN 1

  • 15 Lifter assembly RM1-5914-000CN 1

  • 16 Fan (FN103) RK2-1992-000CN 1

  • 17 Cable, lifter motor RM1-7162-000CN 1

  • 18 Fan (FN102) RK2-1989-000CN 1

  • 19 Cable, fuser motor RM1-7159-000CN 1

  • 20 Sensor, assembly temperature RM1-7420-000CN 1



8. HP M4555 High voltage power supply HVPS printer parts diagram

8. HP M4555 High voltage power supply HVPS printer parts diagram
8. HP M4555 High voltage power supply HVPS printer parts diagram

  • 1 Paper feed assembly RM1-4548-000CN 1

  • 2 High-voltage power supply 110V RM1-7384-000CN 1

  • 2 High-voltage power supply 220V RM1-7386-000CN 1

  • 3 Connector, drawer WS1-6336-000CN 1



9. HP M4555 Paper tray cassette assembly tray 2 printer parts diagram

9. HP M4555 Paper tray cassette assembly tray 2 printer parts diagram
9. HP M4555 Paper tray cassette assembly tray 2 printer parts diagram

  • 1 Cassette assembly (Tray 2) RM1-7379-000CN 1



10. HP M4555 Paper pickup assembly printer parts diagram

10. HP M4555 Paper pickup assembly printer parts diagram
10. HP M4555 Paper pickup assembly printer parts diagram

  • 1 Paper pickup assembly RM1-5919-000CN 1

  • 2 Torque limiter RC1-3293-000CN 1

  • 3 Paper pickup roller, cassette RL1-2099-000CN 1

  • 4 Paper feed roller, cassette RM1-0037-020CN 2

  • 5 Paper sensor PCA assembly RM1-5853-000CN 1



11. HP M4555 Reverse assembly printer parts diagram

11. HP M4555 Reverse assembly printer parts diagram
11. HP M4555 Reverse assembly printer parts diagram

  • 1 Reverse assembly RM1-7399-000CN 1

  • 2 Reverse PCA assembly RM1-1379-000CN 1



12. HP M4555 Paper feed roller assembly printer parts diagram

12. HP M4555 Paper feed roller assembly printer parts diagram
12. HP M4555 Paper feed roller assembly printer parts diagram

  • 1 Paper feed roller assembly RM1-4527-000CN 1



13. HP M4555 Registration assembly printer parts diagram

13. HP M4555 Registration assembly printer parts diagram
13. HP M4555 Registration assembly printer parts diagram

  • 1 Registration assembly RM1-5460-010CN 1



14. HP M4555 MP Tray 1 pickup assembly printer parts diagram

14. HP M4555 MP Tray 1 pickup assembly printer parts diagram
14. HP M4555 MP Tray 1 pickup assembly printer parts diagram

  • 1 MP (Tray 1) pickup assembly RM1-7377-000CN 1

  • 2 MP (Tray 1) pickup roller RL1-1641-000CN 1

  • 3 MP (Tray 1) feed roller RL1-1663-000CN 1

  • 4 MP (Tray 1) separation roller RM1-5460-010CN 1



15. HP M4555 Duplex assembly printer parts diagram

15. HP M4555 Duplex assembly printer parts diagram
15. HP M4555 Duplex assembly printer parts diagram

  • 1 Duplex assembly RM1-7387-000CN 1



16. HP M4555 Fuser assembly printer parts diagram

16. HP M4555 Fuser assembly printer parts diagram
16. HP M4555 Fuser assembly printer parts diagram

  • 1 Fuser assembly 110V RM1-7395-000CN 1

  • 1 Fuser assembly 220V RM1-7397-000CN 1



17. HP M4555 PCS printed circuit board base model assembly printer parts diagram

17. HP M4555 PCS printed circuit board base model assembly printer parts diagram
17. HP M4555 PCS printed circuit board base model assembly printer parts diagram

  • 1 Power supply, high-voltage 110V RM1-7384-000CN 1

  • 1 Power supply, high-voltage 220V RM1-7386-000CN 1

  • 2 DC controller PCA RM1-7102-000CN 1

  • 3 Power supply, low-voltage 110V RM1-7401-000CN 1

  • 3 Power supply, low-voltage 220VRM1-7413-000CN 1

  • 4 Formatter, IFA CE502-60113 1

  • Not shown Connector PCB assembly RM1-7375-000CN 1



18. HP M4555 Paper feeder covers assembly printer parts diagram

18. HP M4555 Paper feeder covers assembly printer parts diagram
18. HP M4555 Paper feeder covers assembly printer parts diagram

  • 1 Cover, front right (1x500) RC2-7307-000CN 1

  • 2 Cover, left (1x500) RC3-1328-000CN 1

  • 3 Cover, left handle (1x500) RC3-1329-000CN 1

  • 4 Cover, right (1x500) RC3-1330-000CN 1

  • 5 Cover, right handle (1x500) RC3-1331-000CN 1

  • 6 Cover, right front (1x500) RC3-1332-000CN 1

  • 7 Cover, rear (1x500) RC3-1333-000CN 1



19. HP M4555 Main body paper feeder 1 x 500 sheet assembly printer parts diagram

19. HP M4555 Main body paper feeder 1 x 500 sheet assembly printer parts diagram
19. HP M4555 Main body paper feeder 1 x 500 sheet assembly printer parts diagram

  • 4 Lifter assembly (1x500) RM1-5914-000CN 1

  • 7 Paper pickup drive assembly (1x500) RM1-5941-000CN 1

  • 8 Paper driver PCA (1x500) RM1-7189-000CN 1

  • 9 Paper pickup assembly (1x500) RM1-5929-030CN 1

  • 10 Cassette (1x500) RM1-7379-000CN 1



20. HP M4555 Covers paper feeder 1 x 500 3 x 500 sheet assembly printer parts diagram

20. HP M4555 Covers paper feeder 1 x 500 3 x 500 sheet assembly printer parts diagram
20. HP M4555 Covers paper feeder 1 x 500 3 x 500 sheet assembly printer parts diagram

  • 4 Cover, rear lower (SF) RC2-7305-000CN 1

  • 5 Cover, rear (SF) RC2-7304-000CN 1

  • 7 Cover, left (SF) RC2-7306-000CN 1

  • 8 Cover, right front (1x500) RC2-7320-000CN 1

  • 8 Cover, right front (3x500) RC2-7321-000CN 1

  • 11 Cover, right center (SF) RC2-7309-000CN 1

  • 14 Cover, right door assembly (1x500) RM1-6932-000CN 1

  • 14 Cover, right door assembly (3x500) RM1-6933-000CN 1

  • 16 Door, stock (1x500) RC2-7315-000CN 1

  • 17 Cover, right upper (SF) RC2-7310-000CN 1

  • 18 Cover, rear upper (SF) RC2-9274-000CN 1



20. HP M4555 Covers paper feeder 1 x 500 3 x 500 1 of 2 sheet assembly printer parts diagram

20. HP M4555 Covers paper feeder 1 x 500 3 x 500 1 of 2 sheet assembly printer parts diagram
20. HP M4555 Covers paper feeder 1 x 500 3 x 500 1 of 2 sheet assembly printer parts diagram

  • 1 Paper deck driver PCA (1x500)RM1-7189-000CN 1

  • 2 Cassette assembly (1x500/3x500)RM1-7379-000CN 1/3

  • 7 Paper pickup drive assembly (1x500)RM1-5941-000CN 1

  • 8 Auxiliary foot assembly (1x500/3x500)RM1-5938-000CN 2/4

  • 9 Paper pickup assembly (1x500/3x500)RM1-5929-030CN 1/3



21. HP M4555 Covers paper feeder 1 x 500 3 x 500 2 of 2 sheet assembly printer parts diagram

21. HP M4555 Covers paper feeder 1 x 500 3 x 500 2 of 2 sheet assembly printer parts diagram
21. HP M4555 Covers paper feeder 1 x 500 3 x 500 2 of 2 sheet assembly printer parts diagram

  • 6 Paper pickup drive assembly (3x500) RM1-5942-000CN 1

  • 8 Paper deck driver PCA (3x500) RM1-7153-000CN 1



22. HP M4555 Main body MBM Covers printer parts diagram

22. HP M4555 Main body MBM Covers printer parts diagram
22. HP M4555 Main body MBM Covers printer parts diagram

  • 1 Cover, front assembly (MBM) RM1-7438-000CN 1

  • 2 Cover, rear (MBM) RC2-8147-000CN 1

  • 3 Cover, bottom (MBM) RL1-2438-000CN 1

  • 4 Panel, stacking (MBM) RL1-1984-000CN 1

  • 5 Door, right (MBM) RC2-8149-000CN 1

  • 6 Lifter guide assembly (MBM) RM1-6330-000CN 2

  • 7 Cover, top assembly (MBM) RM1-6669-000CN 1

  • 8 Tray assembly (MBM) RM1-5161-000CN 1

  • 9 Tray, stopper (MBM) RC2-5576-000CN 2

  • 10 Interlock lever assembly (MBM) RM1-6335-000CN 1



23. HP M4555 Main body MBM 1 of 2 printer parts diagram

23. HP M4555 Main body MBM 1 of 2 printer parts diagram
23. HP M4555 Main body MBM 1 of 2 printer parts diagram

  • 3 Stage assembly (MBM) RM1-5159-000CN 1

  • 5 Paper feed roller assembly (MBM) RM1-6332-000CN 1

  • 9 Stage top sub assembly (MBM) RM1-7437-000CN 1

  • 14 Interlock assembly (MBM) RM1-7431-000CN 1

  • 15 Paper feed guide assembly (MBM) RM1-5173-000CN 1

  • 17 Solenoid, stamp assembly (MBM) RM1-6664-000CN 1

  • 18 Solenoid, entrance assembly (MBM) RM1-6663-000CN 1



24. HP M4555 Main body MBM 2 of 2 printer parts diagram

24. HP M4555 Main body MBM 2 of 2 printer parts diagram
24. HP M4555 Main body MBM 2 of 2 printer parts diagram

  • 4 MBM driver PCA (MBM) RM1-7433-000CN 1

  • 6 Jog assembly (MBM) RM1-7433-000CN 1

  • 7 Lift tray assembly (MBM) RM1-5156-000CN 1

  • 8 Flapper assembly (MBM) RM1-5157-000CN 1

  • 10 MBM bin assembly (MBM) RM1-6668-000CN 1

  • 11 Stapler assembly (MBM) RM1-5166-000CN 1

  • 12 Bin sensor PCA (MBM) RM1-5894-000CN 1



25. HP M4555 Document feeder whole unit printer parts diagram

25. HP M4555 Document feeder whole unit printer parts diagram
25. HP M4555 Document feeder whole unit printer parts diagram

  • 1 Automatic document feeder (ADF) PF2309-SVPNI 1



26. HP M4555 Document feeder components 1 of 5 printer parts diagram

26. HP M4555 Document feeder components 1 of 5 printer parts diagram
26. HP M4555 Document feeder components 1 of 5 printer parts diagram

  • 2241 Interconnection board (ASY-PBA-RELAY-SP)PF2309K118NI 1

  • 2209 Hinge, right counterbalance (ASY-HNG-R-SP)PF2309K119NI 1

  • 2224 Sensor, open/close ADF (ASY-DFSENS-SP)PF2309K121NI 1



27. HP M4555 Document feeder components 2 of 5 printer parts diagram

27. HP M4555 Document feeder components 2 of 5 printer parts diagram
27. HP M4555 Document feeder components 2 of 5 printer parts diagram

  • 2241 Sensor open/angle ADF (ASY-SG2481-NY-SP) PF2309K122NI 5

  • 2233 Motor, feed assembly ADF (ASY-MOT-FE-SP) PF2309K125NI 1

  • 2234 Motor read assembly ADF (ASY-MOT-RE-SP) PF2309K126NI 1

  • 2099 Motor, fan ADF (ASY-FAN-SP) PF2309K127NI 1

  • 2222 Upper paper path assembly (ASY-GIDREV-SPR-SP) PF2309K129NI 1



28. HP M4555 Document feeder components 3 of 5 printer parts diagram

28. HP M4555 Document feeder components 3 of 5 printer parts diagram
28. HP M4555 Document feeder components 3 of 5 printer parts diagram

  • 2223 Separation pad (ASY-HLD-REV-PAD-SP) PF2309K133NI 1



29. HP M4555 Document feeder components 4 of 5 printer parts diagram

29. HP M4555 Document feeder components 4 of 5 printer parts diagram
29. HP M4555 Document feeder components 4 of 5 printer parts diagram

  • 2005 Lever, media presence sensor (ASY-LVR-FE-EMP-SP) PF2309K130NI 1

  • 2240 Pick roller assembly (ASY-ROL-FE-FEED-SP) PF2309K131NI 1

  • 2230 Cover, pick roller assembly cover (ASY-CVR-FE-PICK-SP) PF2309K132NII 1



30. HP M4555 Document feeder components 5 of 5 printer parts diagram

30. HP M4555 Document feeder components 5 of 5 printer parts diagram
30. HP M4555 Document feeder components 5 of 5 printer parts diagram

  • 2208 ADF base assy (ASY-BASE-SP) PF2309K102NI 1

  • 2213 ADP paper path assy (ASY-FRM-RE-FEED-SP) PF2309K103NI 1

  • 2210 Hinge, left counterbalance (ASY-HNG-L-SP) PF2309K104NI 1

  • 2225 Door jam assembly (ASY-CVR-FE-FEED-SP) PF2309K105NI 1

  • 2231 Tray, input assembly (ASY-TRY-SP) PF2309K106NI 1

  • 2232 Cover, front assembly (ASY-CVR-F-SP) PF2309K107NI 1

  • 2243 Cable, ADF interface (ASM-IF-SP) PF2309K110NI 1

  • 2407 Toroid, ADF interface cable (ASY-TFT-152613N-SP) PF2309K111NI 1

  • 2408 Sensor, ADF open/angle (ASY-TFB-2024IRS) PF2309K112NI 1

  • 2022 Cover, rear (ASY-CVR-F-R-SP) PF2309K114NI 1

  • 2024 Output tray extension PF2309K116NI 1

  • 2068 White background assembly PF2309K117NI 1



31. HP M4555 Whole Scanner Assembly printer parts diagram

31. HP M4555 Whole Scanner Assembly printer parts diagram
31. HP M4555 Whole Scanner Assembly printer parts diagram

  • 1 Scanner assembly IR4070-SVP 1



32. HP M4555 Scanner Components 1 of 8 printer parts diagram

32. HP M4555 Scanner Components 1 of 8 printer parts diagram
32. HP M4555 Scanner Components 1 of 8 printer parts diagram

  • 1002 Hinge restraining pin (S-SFT-STP-HNG) IR4068K319NI 2

  • 1004 Cover, rear scanner (S-CVR-REAR) IR4068K321NI 1

  • 1601 Cover, left upper scanner IR4070K301NI 1

  • 1602 Cover, left flapper scanner IR4070K302NI 1



33. HP M4555 Scanner Components 2 of 8 printer parts diagram

33. HP M4555 Scanner Components 2 of 8 printer parts diagram
33. HP M4555 Scanner Components 2 of 8 printer parts diagram

  • 1605 Cover, Asm ICB main left IR4070K304NI 1

  • 1601 Cover, left upper scanner IR4070K301NI 1

  • 1709 Cable, Asm power IR4070K305NI 1



34. HP M4555 Scanner Components 3 of 8 printer parts diagram

34. HP M4555 Scanner Components 3 of 8 printer parts diagram
34. HP M4555 Scanner Components 3 of 8 printer parts diagram

  • 1706 Screw (ASY-040100FNBB) IR4068K342NI 16

  • 1708 Cover, sheet metal assembly with cable IR4068K344NI 1



35. HP M4555 Scanner Components 4 of 8 printer parts diagram

35. HP M4555 Scanner Components 4 of 8 printer parts diagram
35. HP M4555 Scanner Components 4 of 8 printer parts diagram

  • 1222 Cable, FFC to SCB and IC board (S-K-CBP-INV-FFC) IR4068K303NI 1

  • 1501 Screw (ASY-030060FNIT) IR4068K341NI 9



36. HP M4555 Scanner Components 5 of 8 printer parts diagram

36. HP M4555 Scanner Components 5 of 8 printer parts diagram
36. HP M4555 Scanner Components 5 of 8 printer parts diagram

  • 1007 Size sensor (S-SNS-EY3A-1061-2) IR4068K305NI 1

  • 1212 Interconnection board (S-PBA-TYUKEI) IR4068K307NI 1

  • 1213 Cable, FFC to SCB and IC board (S-K-CBP-RELAY-FFC) IR4068K308NI 1

  • 1519 Wire saddle (RTMC-01T V0) IR4070K308NI 1



37. HP M4555 Scanner Components 6 of 8 printer parts diagram

37. HP M4555 Scanner Components 6 of 8 printer parts diagram
37. HP M4555 Scanner Components 6 of 8 printer parts diagram

  • 1214 Scanner motor assembly (S-ASSY-MOTOR-UNIT) IR4068K309NI 1

  • 1013 Grounding feature (S-SP-GND-SFT-R) IR4068K310NI 1

  • 1016 Scanner fan motor (S-FAN-D06037600G-01) IR4068K311NI 1

  • 1217 Carriage assembly (ASSY-CRG-UNIT-IR4068) IR4068K200NI 1

  • 1601 Grounding feature (Sp-Gnd-F) IR4070K309NI 2



38. HP M4555 Scanner Components 7 of 8 printer parts diagram

38. HP M4555 Scanner Components 7 of 8 printer parts diagram
38. HP M4555 Scanner Components 7 of 8 printer parts diagram

  • 1219 Scanner control board (SCB) (S-PBA-SCB) IR4068K312NI 1

  • 1027 Fan filter (S-FLTR-IN) IR4068K313NI 1

  • 1028 Cover, fan filter (S-CVR-FAN) IR4068K314NI 1



39. HP M4555 Scanner Components 8 of 8 printer parts diagram

9. HP M4555 Scanner Components 8 of 8 printer parts diagram
9. HP M4555 Scanner Components 8 of 8 printer parts diagram

  • 1207 Cover, scanner upper assembly IR4068K315NI 1



Other Helpful HP LaserJet Printer Support Resources

Metrofuser is a leading global innovator, manufacturer of printer parts, equipment, diagnostics, repair information and systems solutions for professional users performing critical tasks. Products and services include hp printer parts, printers and printer repair training. Parts include hp printer parts such as printer fusers, printer maintenance kits and other hp printer replacement parts.  The company's, customers include office equipment dealerships, online retailers, repair centers and MPS service providers nationwide. Metrofuser has been named to Inc. Magazine’s fastest growing companies five consecutive years

Top Selling Printer Parts

​

Top Selling Fusers

​

Top Selling Maintenance Kits

Please Review Us On Google

​

Top Dollar Paid For HP Fuser and Transfer Belt Cores

​

We Buy Unused Genuine HP Surplus Fusers, Maintenance Kits And Transfer Belts

bottom of page
